Wholesale Ricoh Fabric Printer

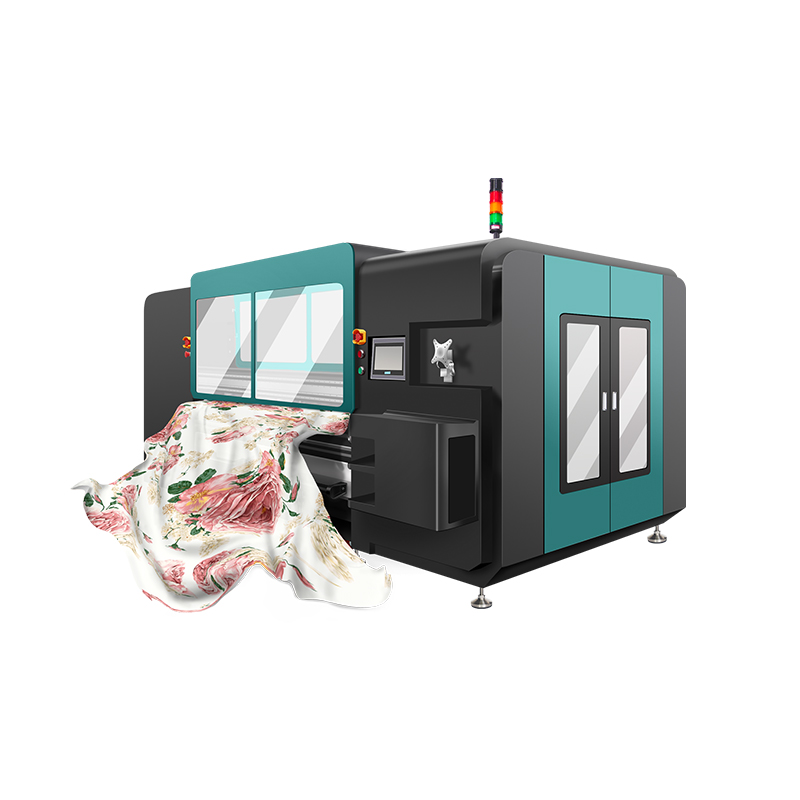

Direct to fabric printer with 32 pieces of starfire 1024 printing heads

Short Description:

★ Starfire SGI024 high-speed industrial-grade print nozzles can better meet the needs of industrial production.
★ Using magnetic levitation linear motor, printing accuracy is higher.
★ The application of negative pressure ink circuit control system and ink degassing system greatly improves the stability of inkjet.
★ Equipped with an automatic cleaning system for the guide belt to ensure continuous production and improve production efficiency.
★ Active rewinding/unwinding structure to ensure stable stretch and shrinkage of the fabric.


Product Detail

Product Tags

QWGHQ

Video

Product Details

XC08-32

Printer head

32 PCS Starfire 1024 Print head

Print width

2-50mm range is adjustable

Max. Print width

1800mm/2700mm/3200mm/4200mm

Max. Fabric width

1850mm/2750mm/3250mm/4250mm

Production mode

270/h(2pass)

Image type

JPEG/TIFF/BMP file format, RGB/CMYK color mode

Ink color

Ten colors optional:CMYK/CMYK LC LM Grey Red Orange Blue.

Types of ink

Reactive/Disperse/pigment/Acid/reducing ink

RIP Software

Neostampa/Wasatch/Texprint

Transfer medium

Continuous conveyor belt, automatic winding

Head cleaning

Auto head cleaning & auto scraping device

Power

power≦25KW extra dryer 10KW(optional)

Power supply

380vac plus or mius 10%,three phase five wire.

Compressed air

Air flow ≥ 0.3m3/min, air pressure ≥ 6KG

working environment

Temperature 18-28 degrees, humidity 50%-70%

Size

4690(L)*3660(W)*2500MM(H)(Width 1800mm

5590(L)*3660(W)*2500MM(H)(Width 2700mm

6090(L)*3660(W)*2500MM(H)(Width 3200mm



Weight

3800KGS(DRYER 750kgWidth 1800mm) 4500KGS(DRYER 900kg Width 2700mm) 5000KGS(DRYER Width 3200mm 1050kg)

Product Description

Why Choose Us
1: 8000 square meters factory.
2: Powerful R&D team,responsible big after-sales service.
3: Our machine is very famous and earn a good reputation in china.
4: No.1 industry for pigment and disperse of fabric digital printer in china.

parts and software
