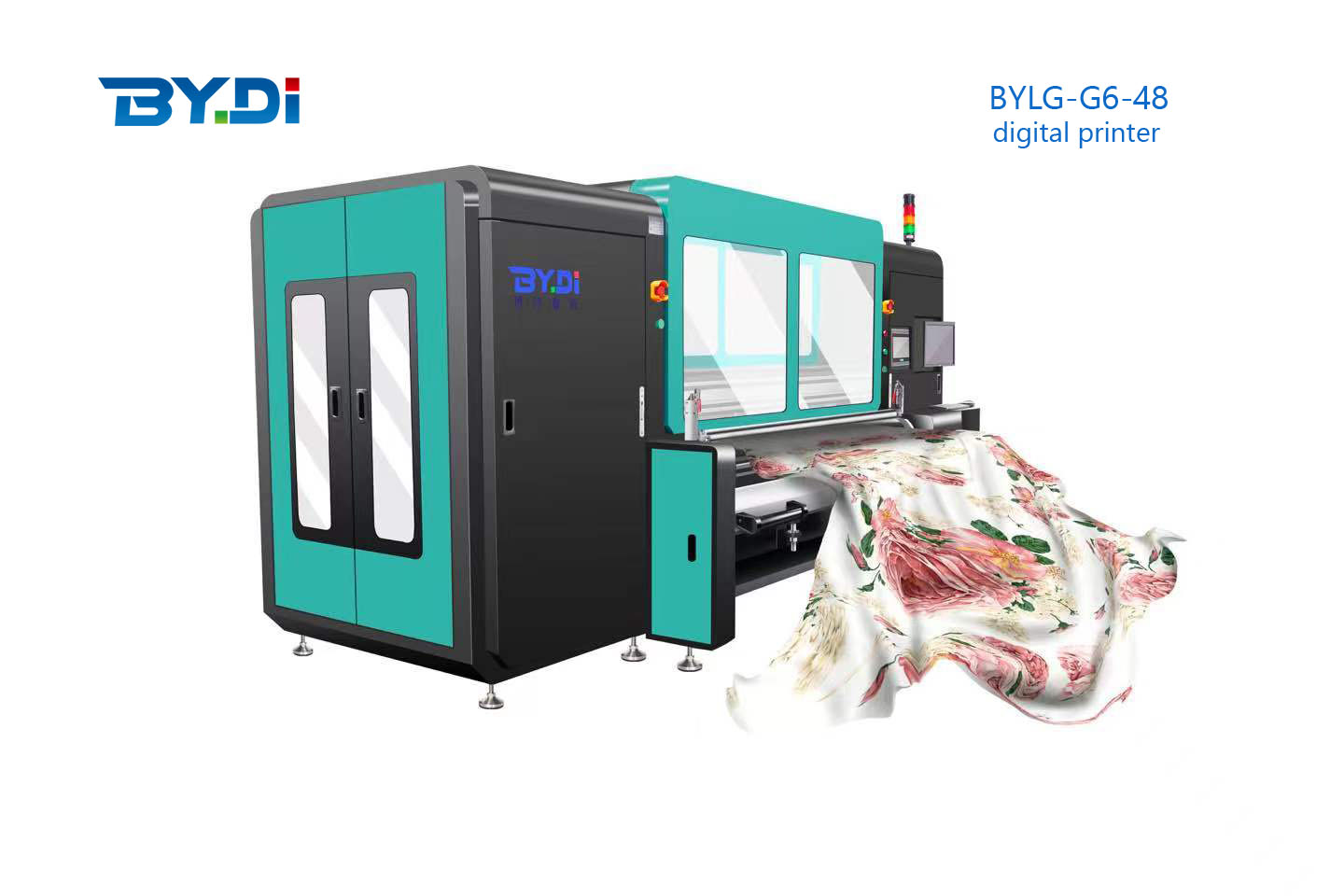

Fabric printing machine with 48 pieces of G6 ricoh printing heads

Short Description:

★ Ricoh G6 high-speed industrial-grade print nozzles can better meet the needs of industrial production.
★ Using magnetic levitation linear motor, printing accuracy is high.
★ The application of negative pressure ink circuit control system and ink degassing system greatly guarantee the stability of inkjet.
★ Equipped with an automatic cleaning system for the guide belt to ensure continuous production and improve production efficiency.
★ Active rewinding/unwinding structure to ensure stable stretch and shrinkage of the fabric.

Send email to us

Product Detail

Product Tags

Video

Product Details

BYLG-G6-48
Print width	2-30mm range
Max. Print width	1800mm/2700mm/3200mm
Max. Fabric width	1850mm/2750mm/3250mm
Production mode	634㎡/h(2pass)
Image type	JPEG/TIFF/BMP file format, RGB/CMYK color mode
Ink color	Ten colors optional:CMYK/CMYK LC LM Grey Red Orange Blue.
Types of ink	Reactive/Disperse/pigment/Acid/reducing ink
RIP Software	Neostampa/Wasatch/Texprint
Transfer medium	Continuous conveyor belt, automatic unwinding and rewinding
Head cleaning	Auto head cleaning & auto scraping device
Power	power≦25KW ，extra dryer 10KW(optional)
Power supply	380vac plus or mius 10%,three phase five wire.
Compressed air	Air flow ≥ 0.3m3/min, air pressure ≥ 6KG
working environment	Temperature 18-28 degrees, humidity 50%-70%
Size	4690(L)3660(W)2500MM(H)(width 1800mm）, 5560(L)4600(W)2500MM(H)(width 2700mm） 6090(L)5200(W)2450MM(H)(width 3200mm）
Weight	4680KGS(DRYER 750kg width 1800mm) 5500KGS(DRYER 900kg width 2700mm) 8680KGS(DRYER width 3200mm 1050kg)

Product Description

Advantage of our machine:
1: High quality:Most parts imported from overseas(very famous brand) to make our machine strong and solid.
2: Rip Software(color management) of our machine from Spain.
3: Printing control system of our machine is from our headquarter Beijing Boyuan Hengxin located in Beijing(capital city of China) which is very famous in China.
4: We purchase Ricoh heads from Ricoh directly while our competitors purchase Ricoh heads from agent of Rocoh. So any problem from ricoh heads, we can get help from ricoh company directly. Our machine with Ricoh heads is best selling in China and quality is also the best.
5: Our machine with Starfire heads can print on carpet.
6: Electric Device and mechanical parts are imported from overseas so our machine is solid and strong.
7: Ink used on our machine: Ink used on our machine for more than 10 years which raw material is imported from Europe so it is highest quality and competitive.
